surgeon's knife
developement of an ergonomic scalpel grip
Common scalpel grips have very sharp edges and were clearly not developed with the human hand in mind. I developed a 3D-printable open source solution. The object can be placed around the scalpel, giving it a more comfortable grip.
Functioning prototype 2019 by Max O'Dell supervised by Prof. Thies Kr├╝ger
.
side view
side view
important angles for a good grip
important angles for a good grip

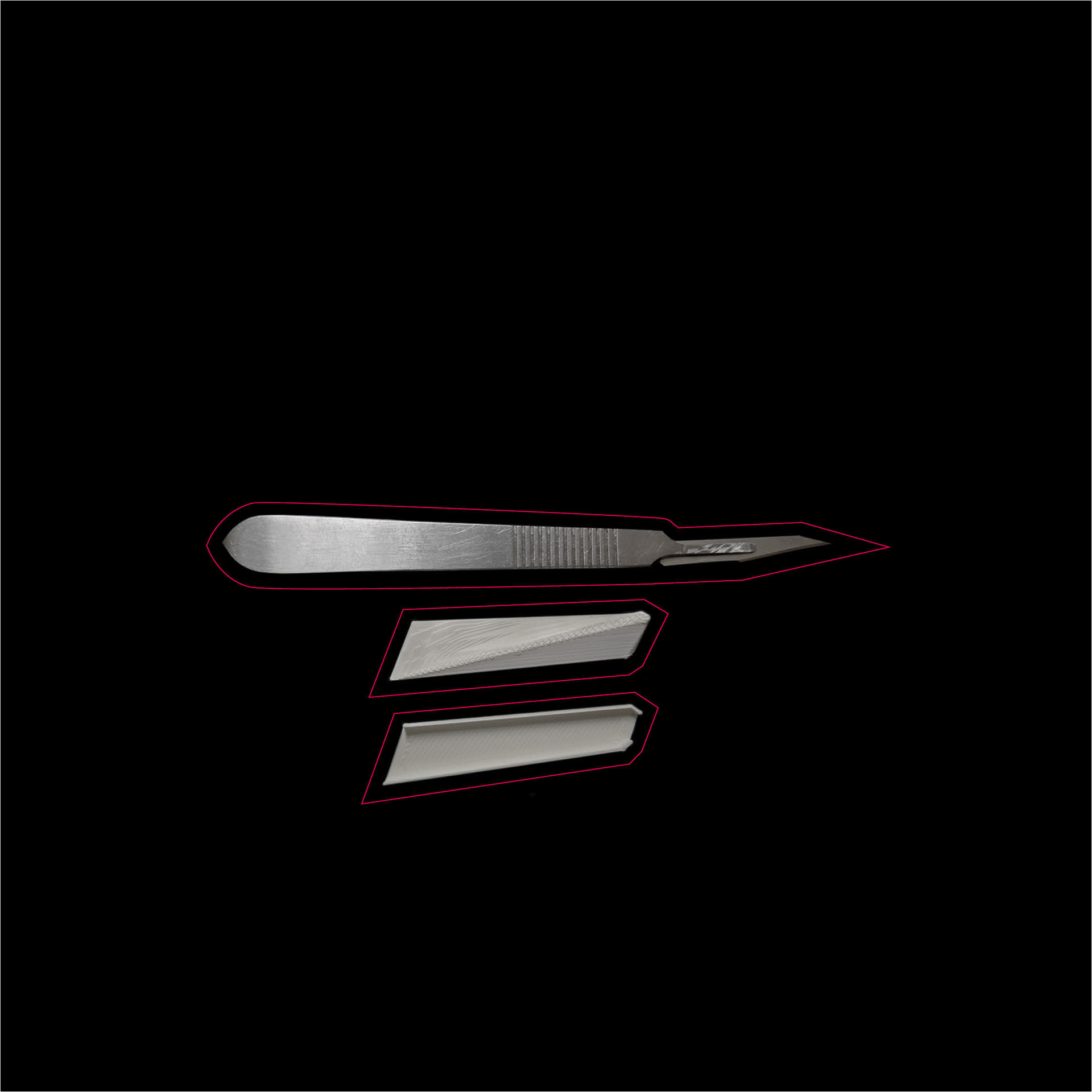

different styles of attachement blades
different styles of attachement blades
.
prototypes
prototypes

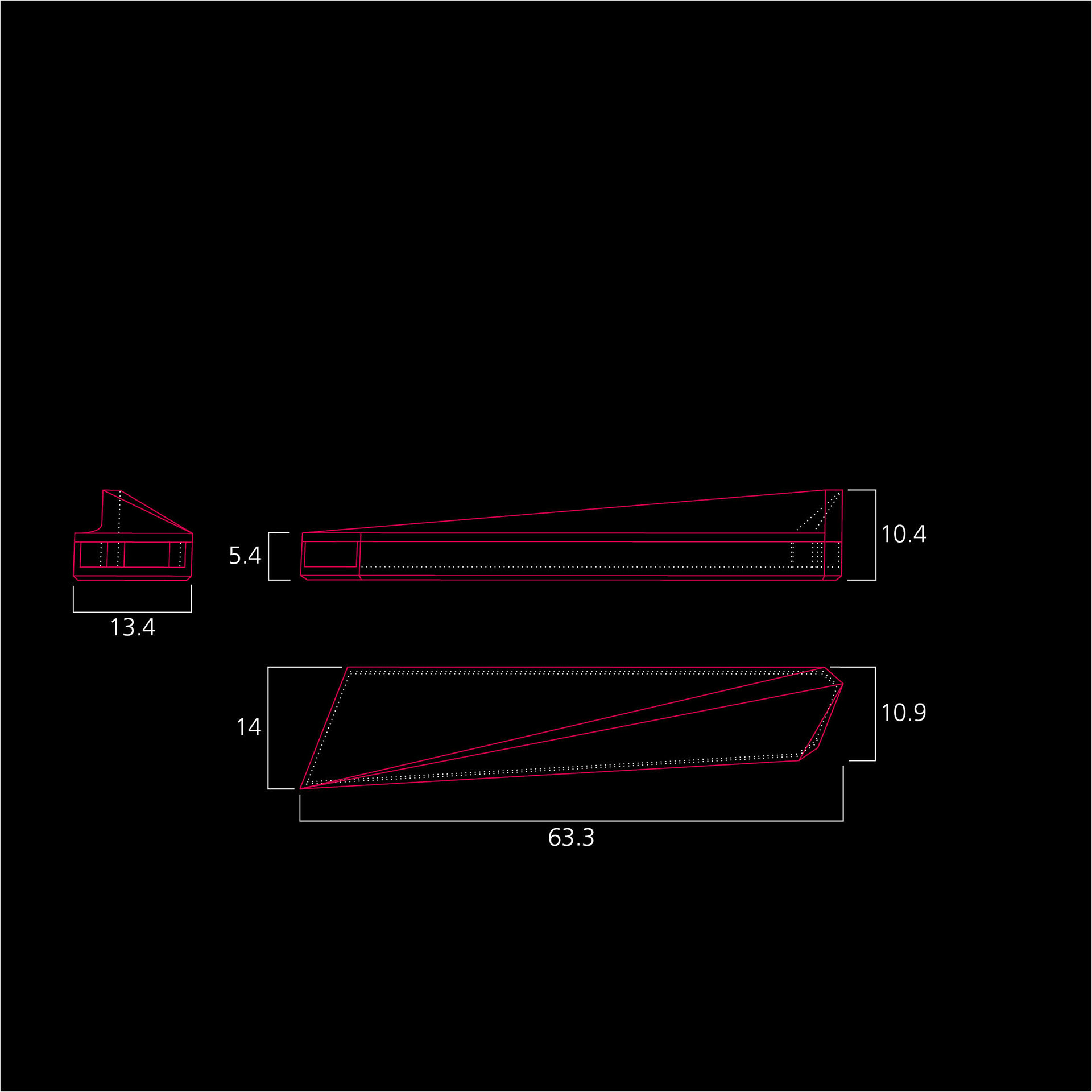

technical drawing
technical drawing
finished 3D-print
finished 3D-print
